Fleet Management System

System Components

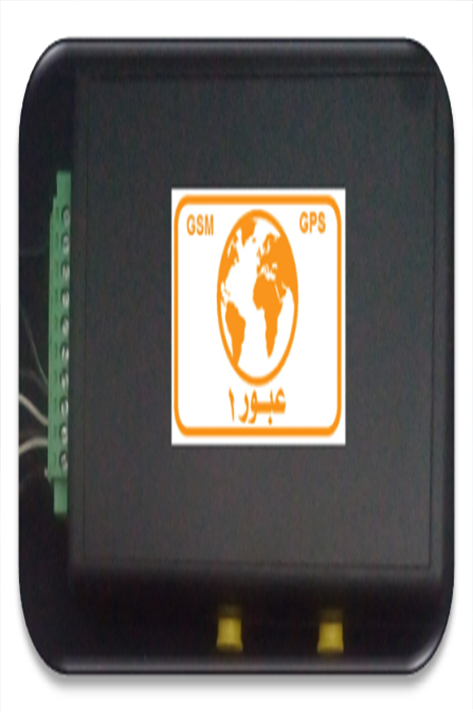

  • A very small unit to be installed behind the dashboard for each car.
  • A Server application and User application to be installed at the client server.
  • Display screen, could be the client desk top computers OR 42” LCD screen (option) according to the client requirement.

Device Specifications

  • GSM System: Quad Band 850/900/1800/1900MHz.
  • GPRS multi slot class 10/8
  • GPRS class 10: max 85.6 Kbps (down link).
  • GPRS mobile station class B.
  • Compliant to GSM phase 2/2+ -
  • GSM class 4 (2 W @850/900 MHz)
  • GSM class 1 (1 W @1800/1900 MHz)
  • GPS Receiver: L1 frequency band, C/A code, 22 Tracking / 66 Acquisition channels.
  • Accuracy: position (up 3 meter), velocity (0.1 m/s), time (60ns )
  • Sensitivity: Tracking 165dBm, Acquisition 148dBm.
  • Acquisition Time: Cold start: 36s, Warm start: 33s. Hot Start: 1s
  • NEMA protocol (default speed 9600 bps)
  • Embedded Antenna.
  • System Power consumption: 450 mA/H
  • System Power supply: 9 -42 Dc volt.
  • System I/O points: Digital & Analogue.
  • System Operating Temperature Range: -20 to 85 C
  • Humidity: 90%
  • Backup Battery, 1300 mA/h, last for 2 hours max.
  • Size: 950X600X300 mm.
  • Enclosure material is ABS.

Application Features

  • Friendly use operation software with ARABIC Language Interface.
  • Full time monitoring of speed, location, direction, over speed, fatigue time and operation time.
  • Full time logging of the measured parameters.
  • At any time from the screen, the user can see the car location, speed, time and date.
  • The system is capable of sending wireless information through the world GSM network.
  • Unique software application with unlimited users which allows the client to have its in house hosting to secure 100% data transfer using TCP/IP protocol via GPRS.
  • All measured parameters will be sending via GSM network using GPRS to the owner’s Server. No monthly fees, No Hyperlink, No account.
  • System is capable to send SMS to 4 preset cell phone numbers.
  • Support users preview setup for security.
  • Support drivers and vehicles data base.
  • Log book Daily operation.
  • Alert for vehicles and drivers licenses renewal date.
  • Vehicle information search or vehicle operation search using vehicles plat or serial number.
  • Support driver information search or driver operation search using driver name or serial number.
  • Support driver’s behavior evaluation using the over speed report and fatigue report.
  • Support driver’s performance evaluation using the over drivers report and total kilometers report.
  • Vehicles periodic maintenance using the trip report, total kilometers report and operation report.
  • Support cars identification using car plate, driver name.
  • Support data retrieving by car No., driver name or date.
  • Support data printing via the software application.
  • Current trip route will show up on the map to ensure the driver follows the exact route.
  • System support history plays back for driver’s evaluation.
  • System support one vehicle OR group vehicles show.
  • Support remotely engine shut down (OPTION)
  • Support SOS (OPTION)
  • Support two ways voice communication (OPTION)
  • Support A/C monitoring (OPTION)
  • Support Engine High Temp. Alert (OPTION)
  • Support Engine Low Oil Pressure Alert (OPTION)
  • Support back box temp monitoring. (OPTION)
  • Support back doors status (OPTION)
  • Support identification of which vehicle parked at unauthorized parking area (OPTION)
  • Support identification of which vehicles moved after the working hours (OPTION)
  • Support predefined working zones for more control level (OPTION)
  • Support client sales points on the map and numbers of visit (OPTION). Note: Items (24,28,29) depend on the vehicle type.
